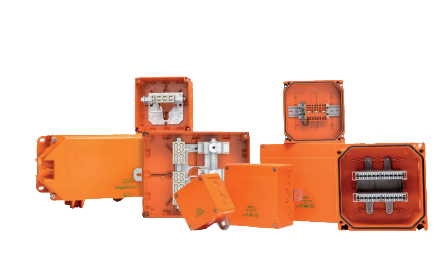

Intrinsic Fire-Resistant Box for connecting and Junction

Junction boxes with fire function guarantee (survival guarantee) E30 /E60 / E90 (acc. to DIN 4102)

Junction Boxes

90 mins Fire Survival
Up to 16 Sqmm, 5 wires
The Junction boxes guarantees the connection without failure
during fire up to 90 mins

E30 – E90, IP66, IK08 – INTRINSIC FIRE RESISTANCE BOX – FUNCTIONAL GUARANTEE BOXES
100 x 100 x 70 mm	WKE 2 - 5 x 1,5²	5-pole, 0.5 - 4 mm², junction box 5-pole 0.5 - 1.5 mm², number of clampable wires per pin: 8 x 0.5² / 4 x 0.75² / 6 x 1² / 6 x 1.5² / 2 x 4²
100 x 100 x 70 mm	WKE 2 - 3 x 4²	3-pole, 1 - 6 mm², junction box 3-pole 1 - 4 mm², number of clampable wires per pin: 10 x 1² / 8 x 1.5² / 6 x 2.5² / 4 x 4² / 2 x 6²
150 x 150 x 85 mm	WKE 4 - 5 x 4²	5-pole, 1 - 10 mm², junction box 5-pole 1 - 4 mm², number of clampable wires per pin: 10 x 1² / 8 x 1.5² / 6 x 2.5² / 4 x 4² / 2 x 6² / 2 x 10²
100 x 100 x 70 mm	WKE 2 - Duo 3 x 4²	3-pole, 0.5 - 4 mm², junction box 3-pole 0.5 - 4 mm², number of clampable wires per pin: 16 x 0.5² / 8 x 0.75² / 12 x 1² / 12 x 1.5² / 4 x 2.5² / 4 x 4²
150 x 150 x 85 mm	WKE 4 - Duo 5/3 x 6²	5-pole, 0.5 - 6 mm², junction box 3-pole 0.5 - 6 mm², number of clampable conductors per pole: 16 x 0.5² / 8 x 0.75² / 12 x 1² / 12 x 1.5² / 4 x 2.5² / 4 x 4² / 4 x 6², in 2-pole pass-through 8 x 0.5² / 4 x 0.75² / 6 x 1² / 6 x 1.5² / 2 x 2.5² / 2 x 4 / 2 x 6²
150 x 150 x 85 mm	WKE 4 - Duo 5 x 6²	5-pole, 0.5 - 6 mm², junction box 5-pole 0.5 - 6 mm², number of clampable conductors per pole: 16 x 0.5² / 8 x 0.75² / 12 x 1² / 12 x 1.5² / 4 x 2.5² / 4 x 4² / 4 x 6²
200 x 250 x 120 mm	WKE 6 - Duo 7 x 6²	7-pole, 0.5 - 6 mm², junction box 7-pole 0.5 - 6 mm², number of clampable conductors per pole: 16 x 0.5² / 8 x 0.75² / 12 x 1² / 12 x 1.5² / 4 x 2.5² / 4 x 4² / 4 x 6²
200 x 250 x 120 mm	WKE 6 - 5 x 6²	5-pole, 1.5 - 16 mm², junction box 5-pole 1 - 6 mm², number of clampable conductors per pole: 10 x 1.5² / 8 x 2.5² / 4 x 4² / 4 x 6² / 2 x 10² / 2 x 16²
150 x 150 x 85 mm	WKE 4 - Duo 3 x 10²	3-pole, 1 - 10 mm², junction box 3-pole 1 - 10 mm², number of clampable conductors per pole: 20 x 1² / 16 x 1.5² / 12 x 2.5² / 8 x 4² / 4 x 6² / 4 x 10²
200 x 250 x 120 mm	WKE 6 - Duo 5 x 10²	5-pole, 1 - 10 mm², junction box 5-pole 1 - 10 mm², number of clampable conductors per pole: 20 x 1² / 16 x 1.5² / 12 x 2.5² / 8 x 4² / 4 x 6² / 4 x 10²
200 x 250 x 120 mm	WKE 6 - Duo 3 x 16²	3-pole, 1.5 - 16 mm², junction box 3-pole 1.5 - 16 mm², number of clampable wires per pin: 20 x 1.5² / 16 x 2.5² / 12 x 4² / 8 x 6² / 4 x 10² / 4 x 16²
200 x 250 x 120 mm	WKE 6 - Duo 5 x 16²	5-pole, 1.5 - 16 mm², junction box 5-pole 1.5 - 16 mm², number of clampable wires per pin: 20 x 1.5² / 16 x 2.5² / 12 x 4² / 8 x 6² / 4 x 10² / 4 x 16²

Electrical Functional Integrity for fused branch

E30 – E90, IP66, IK08 – INTRINSIC FIRE RESISTANCE BOX – FUNCTIONAL GUARANTEE BOXES FOR FUSED BRANCHES
150 x 150 x 85 mm	WKE 4 - 3/3 x 6² 1SB	3-pole, 0.5 - 6 mm², junction box 3-pole 0.5 - 6 mm², fuse in branch 1 x 2A (internal, 1 x WKE BS F2A, 86300101) number of clampable wires per terminal point: 4 x 0 .5² / 2 x 0.75² / 3 x 1² / 3 x 1.5² / 1 x 2.5² / 1 x 4² / 1 x 6²
150 x 150 x 85 mm	WKE 4 - 5/3 x 6² 1SB	3-pole 0.5 - 6 mm², fuse in branch 1 x 2A (internal, 1 x WKE BS F2A, 86300101), number of clampable conductors per terminal point: 4 x 0.5² / 2 x 0.75² / 3 x 1² / 3 x 1.5² / 1 x 2.5² / 1 x 4² / 1 x 6²
200 x 250 x 120 mm	WKE 6 - 5/3 x 10² 1D0	5-pole 1.5 - 10 mm², junction box 3-pole 1.5 - 10 mm², fuse in branch 1 x socket D01 (without insert), number of clampable wires per terminal point 4 x 1.5² / 3 x 2.5² / 2 x 4² / 1 x 6² / 1 x 10²
200 x 250 x 120 mm	WKE 6 - 5/3 x 16² 1D0	5-pole 1.5 - 16 mm², junction box 3-pole 1.5 - 10 mm², fuse in branch 1 x socket D01 (without insert), number of clamped wires per terminal point 5 x 1.5² / 4 x 2.5² / 2 x 4² / 2 x 6² / 1 x 10² / 1 x 16²

Electrical Functional Integrity for communication lines

E30 – E90, IP66, IK08 – INTRINSIC FIRE RESISTANCE BOX – FUNCTIONAL GUARANTEE BOXES FOR COMMUNICATION LINES
150 x 150 x 85 mm	WKE 4 - 8 x 1,5²	8-pole, 0.5 - 2.5 mm², junction box 8-pole 0.5 - 1.5 mm², number of clampable conductors per pole: 8 x 0.5² / 4 x 0.75² / 6 x 1² / 6 x 1.5² / 2 x 2.5²
200 x 250 x 120 mm	WKE 6 - 16 x 1,5²	16-pole, 0.5 - 2.5 mm², junction box 16-pole 0.5 - 1.5 mm², number of clampable conductors per pin: 8 x 0.5² / 4 x 0.75² / 6 x 1² / 6 x 1.5² / 2 x 2.5²
200 x 250 x 120 mm	WKE 6 - 32 x 1,5²	32-pole, 0.5 - 2.5 mm², junction box 32-pole 0.5 - 1.5 mm², number of clampable conductors per pin: 8 x 0.5² / 4 x 0.75² / 6 x 1² / 6 x 1.5² / 2 x 2.5²
